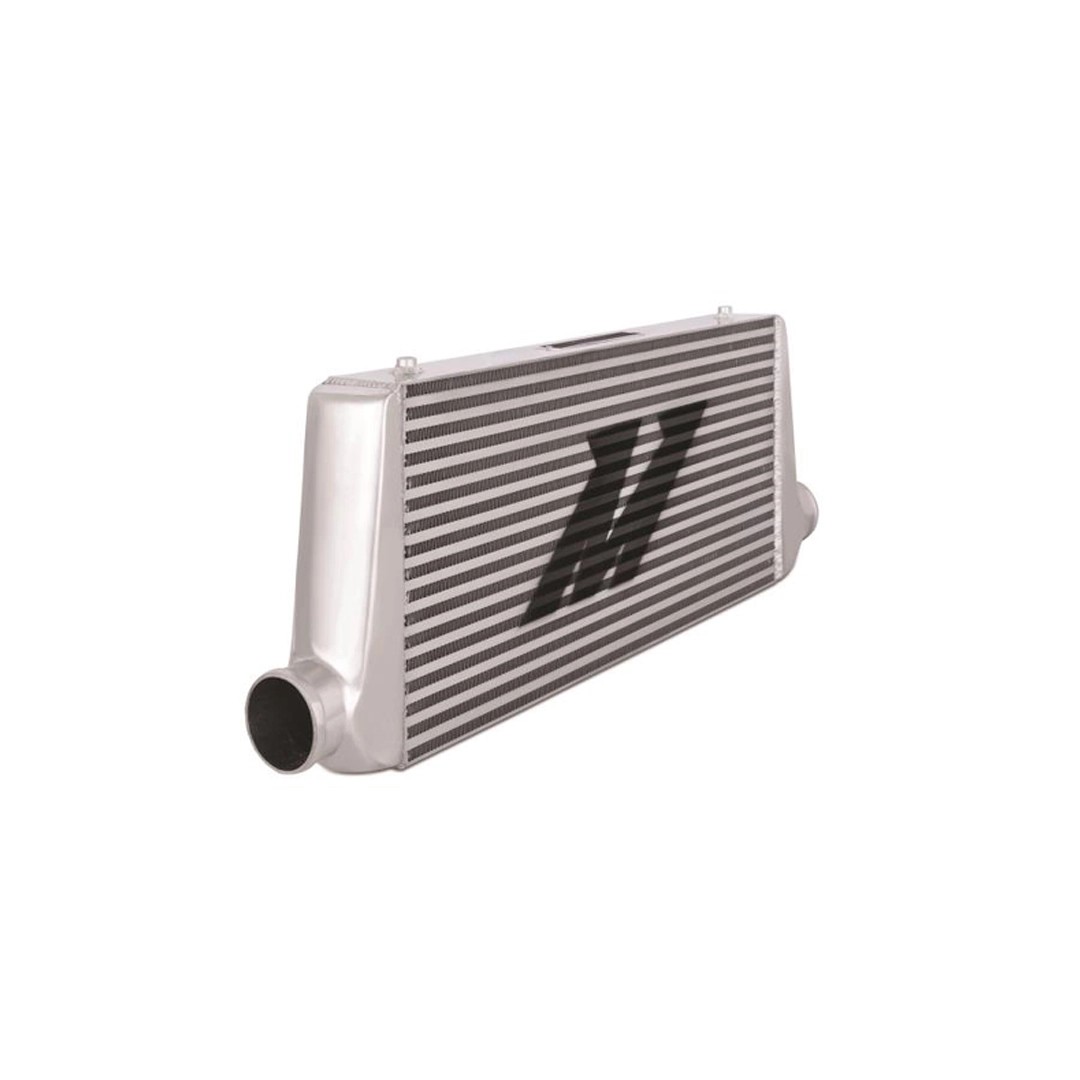

Mishimoto Universal R-Line Intercooler 18.8 Litre – Silver – MMINT-UR

Mishimoto Universal R-Line Intercooler 18.8 Litre – Silver – MMINT-UR

Designed for high-performance supercharged and turbocharged vehicles, this universal intercooler increases performance by reducing the charge air temperature of the engine. Constructed from durable 6061 aircraft-grade aluminum, the bar-and-plate core design offers high heat transfer and low pressure drop. The one-piece cast aluminum end tanks are designed to withstand high boost pressures.

✅ 31“ x 12” x 4“ (787 mm x 305 mm x 102 mm) overall dimensions
✅ 24” x 12“ x 4” (610 mm x 305 mm x 102 mm) core dimensions
✅ 3” (76 mm) inlet and outlet diameter
✅ 1250 CFM airflow capacity
✅ 32 PSI maximum operating pressure
✅ 5 mm thick tank walls
✅ 15 FPI (fins per inch) fin density
✅ Silver anodized coating
✅ TIG welded construction

Improves performance by reducing engine charge air temperatures during high-performance driving or stop-and-go traffic. Its compact design allows for easy installation in tight spaces.

Compatible Vehicles
- Universal compatibility: Compatible with most vehicles equipped with a 12V electrical system.

Installation
Offers easy installation with its direct-fit design. No special adapter is required during installation; additional mounting hardware may be needed depending on the application.

Note
Compatible only with vehicles equipped with a 12V electrical system. Compatibility with the vehicle's electrical system and mounting area dimensions must be verified before ordering.
